Main Features
1. High efficiency and energy saving: no additional friction loss, much higher efficiency and significant energy saving. The blower automatically adjusts the motor power consumption according to the required air volume (adjustable range of air volume 50-100%).
2. Low noise, no vibration: the fan does not need to set up sound insulation devices, the noise level at 1 m from the machine during operation is <80dB, and the vibration intensity of the fan operation is <1mm/s.
3. No lubricant required: the fan uses air suspension bearing technology, the system requires no lubricant, providing clean air and avoiding secondary pollution.
4. Easy to install: The fan units are light in weight and small in size, making them easy to install. As the fan is supplied as a complete unit (with control system included) and as the fan is vibration-free, no fixing is required for installation.
5. Simple operation and convenient control: the man-machine interface controls remote operation and monitoring in the central control room. The fan is equipped with sensors for online detection of speed, pressure, temperature, flow, power, etc., and the fan's operating status is controlled through the controller. There are anti-surge functions, etc., which can be operated unmanned. The fan air volume is freely adjustable according to external control signals.
Product Model
Air Suspension Centrifugal blower |
||||||||||
Serial Number |
Picture |
Flow |
Pressure |
Shaft power |
Outlet diameter |
Dimension (mm) |
Cooling mode |
Scope of application |
||
![]()
|
m3/min |
(bar) |
(KW) |
(A KS 10K) |
W |
l |
h |
|||
SRK08 |
3~8 |
0.3~0.8 |
7.5 |
150 |
700 |
1200 |
1120 |
Air cooling |
Sewage treatment, biological fermentation, biological pharmacy, iron and steel metallurgy, coking coal chemical industry, cement and building materials, nonferrous metals, desulfurization and oxidation, petrochemical, power, machinery, light industry, textile and other industries |
|
SRK11 |
5~13 |
0.3-0.8 |
11 |
|||||||
SRK15 |
6~15 |
0.3~0.8 |
15 |
|||||||
SRK22 |
7~25 |
0.3~0.8 |
22 |
|||||||
SRK37 |
10~42 |
0.3~0.8 |
37 |
|||||||

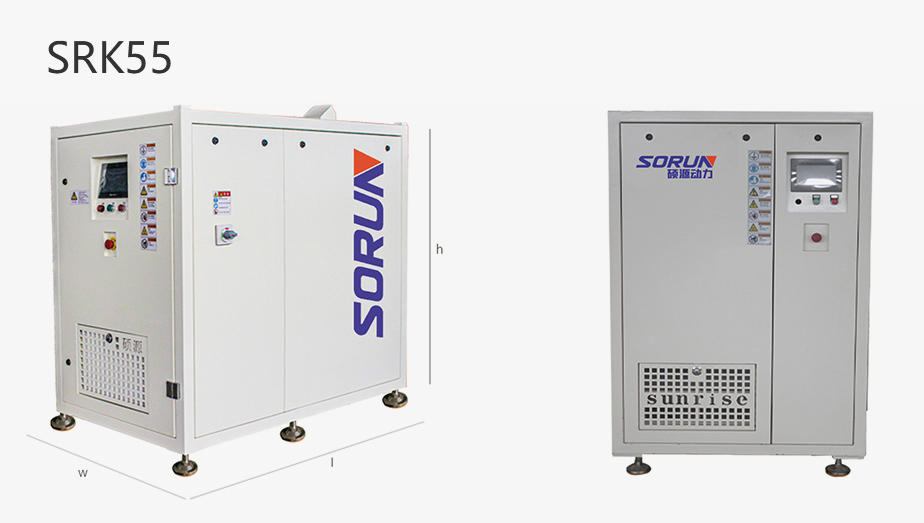

SRK55 |
18~62 |
0.3~1.0 |
55 |
200 |
1033 |
1690 |
1425 |
|||
SRK75 |
23~105 |
0.3~1.0 |
75 |
|||||||
SRK92 |
25~115 |
0.3~0.8 |
92 |
|||||||
SRK110 |
28~130 |
0.3~1.0 |
110 |
300 |
1033 |
2050 |
1697 |
|||
SRK150 |
36~210 |
0.3~1.0 |
150 |
|||||||
SRK185 |
40~235 |
0.3~1.0 |
185 |
|||||||
SRK220 |
80~260 |
0.3~1.0 |
220 |
400 |
1263 |
2260 |
2187 |
|||
SRK295 |
80~275 |
0.3~1.0 |
295 |
400 |
1760 |
2260 |
2187 |
|||
SRK365 |
90~330 |
0.6~1.0 |
365 |
500 |
1760 |
2260 |
2187 |
|||
SRK440 |
100~420 |
0.6~1.0 |
440 |
500 |
2150 |
3600 |
2187 |
|||
SRK590 |
100~520 |
0.6~1.0 |
590 |
600 |
2150 |
3500 |
2187 |
|||
SRT75 |
10~30 |
1.2~2.0 |
75 |
150 |
1033 |
1690 |
1425 |
|||
SRT110 |
12~51 |
1.2~2.0 |
110 |
200 |
1033 |
2050 |
1697 |
|||
SRT150 |
12~76 |
1.2~2.0 |
150 |
250 |
1033 |
2050 |
1697 |
|||
SRT220 |
20~85 |
1.2~2.0 |
220 |
250 |
1263 |
2260 |
2187 |
※ Margin of error: +/-5%
※ Operating conditions: ambient pressure of 100Kpa, ambient temperature of 25℃, ambient humidity of 60RH%
※ Performance guarantee: flow ±4%, power ±5%
※ To improve product performance, product performance can be changed in advance without notice
※ Can be customized if there is special demand
